Miniature Power Relays
MY
Miniature Power Relays - MY

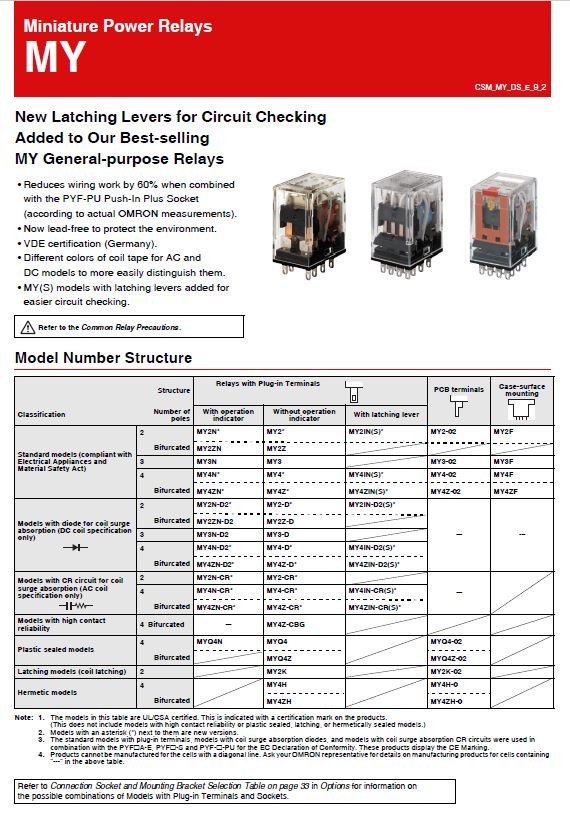

New Latching Levers for Circuit Checking Added to Our Best-selling MY General-purpose Relays- Reduces wiring work by 60% when combined with the PYF-PU push-In plus socket (according to actual OMRON measurements)
- Now lead-free to protect the environment
- VDE certification (Germany)
- Different colors of coil tape for AC and DC models to more easily distinguish them
- MY(S) models with latching levers added for easier circuit checking
Index
| Characteristics | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 C/O / DPDT(what does it mean?) | 3 C/O / 3PDT(what does it mean?) | 4 C/O / 4PDT(what does it mean?) | |||||||||||||||||||
| Standard plugin relays (with socket) (AC/DC coil available) |
Models with diode for coil surge absorption (DC coil specification only) |
Models with CR circuit for coil surge absorption (AC coil specification only) |
Latching models (coil latching) | Standard plugin relays (with socket) | Models with diode for coil surge absorption (DC coil specification only) |
Standard plugin relays (with socket) | Models with diode for coil surge absorption (DC coil specification only) |
Models with CR circuit for coil surge absorption (AC coil specification only) |
Models with high contact reliability |
Plastic sealed models | Hermetic models | ||||||||||
| Standard contacts | Bifurcated contacts | Standard contacts | Bifurcated contacts | Standard contacts | Standard contacts | Standard contacts | Standard contacts | Bifurcated contacts | Standard contacts | Bifurcated contacts | Standard contacts | Bifurcated contacts | Bifurcated contacts | Standard contacts | Bifurcated contacts | Standard contacts | Bifurcated contacts | ||||
Plug-in
|
With operation indicator |  |
MY2N | MY2ZN | MY2N-D2 | MY2ZN-D2 | MY2N-CR | - | MY3N | MY3N-D2 | MY4N | MY4ZN | MY4N-D2 | MY4ZN-D2 | MY4N-CR | MY4ZN-CR | - | MYQ4N | - | - | - |
| Without operation indicator |  |
MY2 | MY2Z | MY2-D | MY2Z-D | MY2-CR | MY2K | MY3 | MY3-D | MY4 | MY4Z | MY4-D | MY4Z-D | MY4-CR | MY4Z-CR | MY4Z-CBG | MYQ4 | MYQ4Z | MY4H | MY4ZH | |
| With latching lever |  |
MY2IN(S) | - | MY2IN-D2(S) | - | - | - | - | - | MY4IN(S) | MY4ZIN(S) | MY4IN-D2(S) | MY4ZIN-D2(S) | MY4IN-CR(S) | MY4ZIN-CR(S) | - | - | - | - | - | |
| PCB terminals |  |
 |
MY2-02 | - | - | - | - | MY2K-02 | MY3-02 | - | MY4-02 | MY4Z-02 | - | - | - | - | - | MYQ4-02 | MYQ4Z-02 | MY4H-0 | MY4ZH-0 |
| Case surface mounting |
 |
 |
MY2F | - | - | - | - | - | MY3F | - | MY4F | MY4ZF | - | - | - | - | - | - | - | - | - |
Documentation
(back to index)
Miniature Power Relays - MY Catalogue
1. Standard models (compliant with Electrical Appliances and Material Safety Act), relays with plug-in or PCB terminals
1.1 Miniature power relays with operation indicator
1.1.1 Miniature power relays with operation indicator with DC coil
(back to index)
| 2 C/O / DPDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
3 C/O / 3PDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
4 C/O / 4PDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
|
 |
 |
|||
| Plug-in | PCB terminals | Case surface mounting | Plug-in | PCB terminals | Plug-in | PCB terminals | Case surface mounting | ||||
| Standard contacts | Bifurcated contacts | Standard contacts | Standard contacts | Standard contacts | Standard contacts | Standard contacts | Bifurcated contacts | Standard contacts | Bifurcated contacts | Standard contacts | |
| 12Vdc | MY2N DC12 | - | MY2-02 DC12 | MY2F DC12 | - | - | MY4N DC12 | - | MY4-02 DC12 | - | MY4F DC12 |
| 24Vdc | MY2N DC24 | MY2ZN DC24 | MY2-02 DC24 | MY2F DC24 | MY3N DC24 | MY3-02 DC24 | MY4N DC24 | MY4ZN DC24 | MY4-02 DC24 | - | MY4F DC24 |
| 48Vdc | MY2N DC48 | - | MY2-02 DC48 | - | - | - | MY4N DC48 | - | - | - | - |
| 100/110Vdc | MY2N DC100/110 | - | - | - | - | - | MY4N DC100/110 | MY4ZN DC100/110 | MY4-02 DC100/110 | MY4Z-02 DC100/110 | - |
| Front-mounting socket (screw clamp terminals or solder terminals) |
PYF08A
PYF08A-E
PYF08M
|
- | - | PYF11A |
- |
PYF14A
PYF14A-E
PYF14T
|
- | - | |||
| Track or screw mounting push-in plus terminal block with release lever |
PYF-08-PU |
- | - | - | - | PYF-14-PU |
- | - | |||
1.1.2 Miniature power relays with operation indicator with AC coil
(back to index)
| 2 C/O / DPDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
3 C/O / 3PDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
4 C/O / 4PDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||
| Plug-in | PCB terminals | Case surface mounting | Plug-in | PCB terminals | Case surface mounting | Plug-in | PCB terminals | ||||
| Standard contacts | Bifurcated contacts | Standard contacts | Standard contacts | Standard contacts | Standard contacts | Standard contacts | Standard contacts | Bifurcated contacts | Standard contacts | ||
| 12Vac | MY2N AC12 | - | - | - | - | - | - | MY4N AC12 | - | - | |
| 24Vac | MY2N AC24 | - | - | MY2F AC24 | MY3N AC24 | - | - | MY4N AC24 | - | - | |
| 100/110Vac | MY2N AC100/110 | MY2ZN AC100/110 | MY2-02 AC100/110 | - | MY3N AC100/110 | MY3-02 AC100/110 | MY3F AC100/110 | MY4N AC100/110 | MY4ZN AC100/110 | MY4-02 AC100/110 | |
| 110/120Vac | MY2N AC110/120 | - | - | MY2F AC110/120 | - | - | - | - | - | - | |
| 200/220Vac | MY2N AC200/220 | MY2ZN AC200/220 | MY2-02 AC200/220 | - | MY3N AC200/220 | MY3-02 AC200/220 | - | MY4N AC200/220 | MY4ZN AC200/220 | MY4-02 AC200/220 | |
| 200/240Vac | MY2N AC200/240 | - | MY2-02 AC200/240 | - | - | - | - | - | - | - | |
| Front-mounting socket (screw clamp terminals or solder terminals) |
PYF08A
PYF08A-E
PYF08M
|
- | - | PYF11A |
- | - |
PYF14A
PYF14A-E
PYF14T
|
- | |||
| Track or screw mounting push-in plus terminal block with release lever |
PYF-08-PU |
- | - | - | - | - | PYF-14-PU |
- | |||
1.2 Miniature power relays without operation indicator
1.2.1 Miniature power relays without operation indicator with DC coil
(back to index)
| 2 C/O / DPDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
3 C/O / 3PDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
4 C/O / 4PDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
|
 |
|
 |
 |
|
 |
 |
||
| Plug-in | PCB terminals | Case surface mounting | Plug-in | PCB terminals | Plug-in | PCB terminals | Case surface mounting | ||||
| Standard contacts | Bifurcated contacts | Standard contacts | Standard contacts | Standard contacts | Standard contacts | Standard contacts | Bifurcated contacts | Standard contacts | Bifurcated contacts | Standard contacts | |
| 12Vdc | MY2 DC12 | MY2Z DC12 | MY2-02 DC12 | MY2F DC12 | MY3 DC12 | - | MY4 DC12 | MY4Z DC12 | MY4-02 DC12 | - | MY4F DC12 |
| 24Vdc | MY2 DC24 | MY2Z DC24 | MY2-02 DC24 | MY2F DC24 | MY3 DC24 | MY3-02 DC24 | MY4 DC24 | MY4Z DC24 | MY4-02 DC24 | - | MY4F DC24 |
| 48Vdc | MY2 DC48 | - | MY2-02 DC48 | - | - | - | MY4 DC48 | MY4Z DC48 | - | - | - |
| 100/110Vdc | MY2 DC100/110 | - | - | - | MY3 DC100/110 | - | MY4 DC100/110 | MY4Z DC100/110 | MY4-02 DC100/110 | MY4Z-02 DC100/110 | - |
| Front-mounting socket (screw clamp terminals or solder terminals) |
PYF08A
PYF08A-E
PYF08M
|
- | - | PYF11A |
- |
PYF14A
PYF14A-E
PYF14T
|
- | - | - | ||
| Track or screw mounting push-in plus terminal block with release lever |
PYF-08-PU |
- | - | - | - | PYF-14-PU |
- | - | - | ||
1.2.2 Miniature power relays without operation indicator with AC coil
(back to index)
| 2 C/O / DPDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
3 C/O / 3PDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
4 C/O / 4PDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
 |
|
|
 |
 |
|
 |
|||
| Plug-in | PCB terminals | Case surface mounting | Plug-in | PCB terminals | Case surface mounting | Plug-in | PCB terminals | Case surface mounting | ||||
| Standard contacts | Bifurcated contacts | Standard contacts | Standard contacts | Standard contacts | Standard contacts | Standard contacts | Standard contacts | Bifurcated contacts | Standard contacts | Standard contacts | ||
| 12Vac | MY2 AC12 | - | - | - | - | - | - | - | - | - | - | |
| 24Vac | MY2 AC24 | - | - | MY2F AC24 | MY3 AC24 | - | - | MY4 AC24 | - | - | - | |
| 100/110Vac | MY2 AC100/110 | MY2Z AC100/110 | MY2-02 AC100/110 | - | MY3 AC100/110 | MY3-02 AC100/110 | MY3F AC100/110 | MY4 AC100/110 | MY4Z AC100/110 | MY4-02 AC100/110 | MY4F AC100/110 | |
| 200/220Vac | MY2 AC200/220 | MY2Z AC200/220 | MY2-02 AC200/220 | - | MY3 AC200/220 | MY3-02 AC200/220 | - | MY4 AC200/220 | MY4Z AC200/220 | MY4-02 AC200/220 | MY4F AC200/220 | |
| 200/240Vac | - | - | MY2-02 AC200/240 | - | - | - | - | - | - | - | - | |
| Front-mounting socket (screw clamp terminals or solder terminals) |
PYF08A
PYF08A-E
PYF08M
|
- | - | PYF11A |
- | - |
PYF14A
PYF14A-E
PYF14T
|
- | - | |||
| Track or screw mounting push-in plus terminal block with release lever |
PYF-08-PU |
- | - | - | - | - | PYF-14-PU |
- | - | |||
1.3 Miniature power relays with latching lever
1.3.1 Miniature power relays without operation indicator with DC coil
(back to index)
| 2 C/O / DPDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
4 C/O / 4PDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
|||||
|---|---|---|---|---|---|---|
 |
|
 |
|
|
||
| Plug-in | PCB terminals | Case surface mounting | Plug-in | PCB terminals | Case surface mounting | |
| 12Vdc | MY2IN DC12(S) | MY2-02 DC12 | MY2F DC12 | MY4IN DC12(S) | MY4-02 DC12 | MY4F DC12 |
| 24Vdc | MY2IN DC24(S) | MY2-02 DC24 | MY2F DC24 | MY4IN DC24(S) | MY4-02 DC24 | MY4F DC24 |
| 48Vdc | MY2IN DC48(S) | MY2-02 DC48 | - | MY4IN DC48(S) | - | - |
| Front-mounting socket (screw clamp terminals or solder terminals) |
PYF08A
PYF08A-E
PYF08M
|
- | - |
PYF14A
PYF14A-E
PYF14T
|
- | - |
| Track or screw mounting push-in plus terminal block with release lever |
PYF-08-PU |
- | - | PYF-14-PU |
- | - |
2. Models with diode for coil surge absorption (DC coil specification only), relays with plug-in terminals
2.1 Miniature power relays with operation indicator
2.1.1 Miniature power relays with operation indicator with DC coil
(back to index)
| 2 C/O / DPDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
3 C/O / 3PDT Rated current (220Vac resistive load) 5A |
4 C/O / 4PDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
|||
|---|---|---|---|---|---|
 |
 |
|
|
 |
|
| Plug-in | Plug-in | Plug-in | |||
| Standard contacts | Bifurcated contacts | Standard contacts | Standard contacts | Bifurcated contacts | |
| 12Vdc | MY2N-D2 DC12 | - | - | MY4N-D2 DC12 | MY4ZN-D2 DC12 |
| 24Vdc | MY2N-D2 DC24 | MY2ZN-D2 DC24 | MY3N-D2 DC24 | MY4N-D2 DC24 | MY4ZN-D2 DC24 |
| 48Vdc | MY2N-D2 DC48 | - | - | - | MY4ZN-D2 DC48 |
| 100/110Vdc | MY2N-D2 DC100/110 | MY2ZN-D2 DC100/110 | - | MY4N-D2 DC100/110 | MY4ZN-D2 DC100/110 |
| Front-mounting socket (screw clamp terminals or solder terminals) |
PYF08A
PYF08A-E
PYF08M
|
- |
PYF14A
PYF14A-E
PYF14T
|
||
| Track or screw mounting push-in plus terminal block with release lever |
PYF-08-PU |
- | PYF-14-PU |
||
2.2 Miniature power relays without operation indicator
2.2.1 Miniature power relays with operation indicator with DC coil
(back to index)
| 2 C/O / DPDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
3 C/O / 3PDT Rated current (24Vdc resistive load) 5A |
4 C/O / 4PDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
|||
|---|---|---|---|---|---|
 |
|
|
 |
 |
|
| Plug-in | Plug-in | Plug-in | |||
| Standard contacts | Bifurcated contacts | Standard contacts | Standard contacts | Bifurcated contacts | |
| 12Vdc | MY2-D DC12 | - | - | MY4-D DC12 | - |
| 24Vdc | MY2-D DC24 | MY2Z-D DC24 | MY3-D DC24 | MY4-D DC24 | MY4Z-D DC24 |
| 48Vdc | - | - | - | MY4-D DC48 | - |
| 100/110Vdc | MY2-D DC100/110 | - | - | MY4-D DC100/110 | MY4Z-D DC100/110 |
| Front-mounting socket (screw clamp terminals or solder terminals) |
PYF08A
PYF08A-E
PYF08M
|
PYF11A |
PYF14A
PYF14A-E
PYF14T
|
||
| Track or screw mounting push-in plus terminal block with release lever |
PYF-08-PU |
- | PYF-14-PU |
||
2.3 Miniature power relays with latching lever
2.3.1 Miniature power relays without operation indicator with DC coil
(back to index)
| 2 C/O / DPDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
4 C/O / 4PDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
||
|---|---|---|---|
 |
 |
 |
|
| Plug-in | Plug-in | ||
| Standard contacts | Standard contacts | Bifurcated contacts | |
| 12Vdc | MY2IN-D2 DC12(S) | - | |
| 24Vdc | MY2IN-D2 DC24(S) | MY4IN-D2 DC24(S) | MY4ZIN-D2 DC24(S) |
| Front-mounting socket (screw clamp terminals or solder terminals) |
PYF08A
PYF08A-E
PYF08M
|
PYF14A
PYF14A-E
PYF14T
|
|
| Track or screw mounting push-in plus terminal block with release lever |
PYF-08-PU |
PYF-14-PU |
|
3. Models with CR circuit for coil surge absorption (AC coil specification only), relays with plug-in terminals
3.1 Miniature power relays with operation indicator
3.1.1 Miniature power relays without operation indicator with AC coil
(back to index)
| 2 C/O / DPDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
4 C/O / 4PDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
||
|---|---|---|---|
 |
 |
 |
|
| Plug-in | Plug-in | ||
| Standard contacts | Standard contacts | Bifurcated contacts | |
| 100/110Vac | MY2N-CR AC100/110 | MY4N-CR AC100/110 | MY4ZN-CR AC100/110 |
| 110/120Vac | - | MY4N-CR AC110/120 | - |
| 200/220Vac | MY2N-CR AC200/220 | MY4N-CR AC200/220 | MY4ZN-CR AC200/220 |
| Front-mounting socket (screw clamp terminals or solder terminals) |
PYF08A
PYF08A-E
PYF08M
|
PYF14A
PYF14A-E
PYF14T
|
|
| Track or screw mounting push-in plus terminal block with release lever |
PYF-08-PU |
PYF-14-PU |
|
3.2 Miniature power relays without operation indicator
3.2.1 Miniature power relays without operation indicator with AC coil
(back to index)
| 2 C/O / DPDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
4 C/O / 4PDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
||
|---|---|---|---|
 |
 |
 |
|
| Plug-in | Plug-in | ||
| Standard contacts | Standard contacts | Bifurcated contacts | |
| 100/110Vac | MY2-CR AC100/110 | MY4-CR AC100/110 | MY4Z-CR AC100/110 |
| 200/220Vac | MY2-CR AC200/220 | MY4-CR AC200/220 | MY4Z-CR AC200/220 |
| Front-mounting socket (screw clamp terminals or solder terminals) |
PYF08A
PYF08A-E
PYF08M
|
PYF14A
PYF14A-E
PYF14T
|
|
| Track or screw mounting push-in plus terminal block with release lever |
PYF-08-PU |
PYF-14-PU |
|
4. Models with high contact reliability, relays with plug-in terminals
4.1 Miniature power relays without operation indicator
(back to index)
| 4 C/O / 4PDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
||||
|---|---|---|---|---|
|
Plug-in | |||
| 24Vdc | 100/110Vdc | 100/110Vac | 200/220Vac | |
| Bifurcated contacts | MY4Z-CBG DC24 | MY4Z-CBG DC100/110 | MY4Z-CBG AC100/110 | MY4Z-CBG AC200/220 |
| Front-mounting socket (screw clamp terminals or solder terminals) |
PYF14A
PYF14A-E
PYF14T
|
|||
| Track or screw mounting push-in plus terminal block with release lever |
PYF-14-PU |
|||
5. Plastic sealed models, relays with plug-in or PCB terminals
5.1 Miniature power relays with operation indicator
5.1.1 Miniature power relays without operation indicator with DC coil
(back to index)
| 4 C/O / 4PDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
||
|---|---|---|
 |
 |
|
| Standard contacts | Plug-in | PCB terminals |
| 12Vdc | MYQ4N DC12 | - |
| 24Vdc | MYQ4N DC24 | MYQ4-02 DC24 |
| 48Vdc | MYQ4N DC48 | - |
| 100/110Vdc | MYQ4N DC100/110 | - |
| Front-mounting socket (screw clamp terminals) solder terminals |
PYF14A
PYF14A-E
PYF14T
|
- |
| Track or screw mounting push-in plus terminal block with release lever |
PYF-14-PU |
- |
5.1.2 Miniature power relays without operation indicator with AC coil
(back to index)
| 4 C/O / 4PDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
||
|---|---|---|
 |
 |
|
| Standard contacts | Plug-in | PCB terminals |
| 24Vac | MYQ4N AC24 | MYQ4-02 AC50 |
| 100/110Vac | MYQ4N AC100/110 | - |
| 110/120Vac | MYQ4N AC110/120 | - |
| 200/220Vac | MYQ4N AC200/220 | MYQ4-02 AC200/220 |
| 200/240Vac | - | - |
| Front-mounting socket (screw clamp terminals) solder terminals |
PYF14A
PYF14A-E
PYF14T
|
- |
| Track or screw mounting push-in plus terminal block with release lever |
PYF-14-PU |
- |
5.2 Miniature power relays without operation indicator
5.2.1 Miniature power relays without operation indicator with DC coil
(back to index)
| 4 C/O / 4PDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
||||
|---|---|---|---|---|
 |
 |
|
 |
|
| Plug-in | PCB terminals | |||
| Standard contacts | Bifurcated contacts | Standard contacts | Bifurcated contacts | |
| 12Vdc | - | MYQ4Z DC12 | - | - |
| 24Vdc | MYQ4 DC24 | MYQ4Z DC24 | MYQ4-02 DC24 | MYQ4Z-02 DC24 |
| 48Vdc | - | - | - | MYQ4Z-02 DC48 |
| Front-mounting socket (screw clamp terminals or solder terminals) |
PYF14A
PYF14A-E
PYF14T
|
- | ||
| Track or screw mounting push-in plus terminal block with release lever |
PYF-14-PU |
- | ||
5.2.2 Miniature power relays without operation indicator with AC coil
(back to index)
| 4 C/O / 4PDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
||||
|---|---|---|---|---|
 |
 |
 |
||
| Plug-in | PCB terminals | |||
| Standard contacts | Bifurcated contacts | Standard contacts | ||
| 50Vac | - | - | MYQ4-02 AC50 | - |
| 100/110Vac | MYQ4 AC100/110 | MYQ4Z AC100/110 | - | |
| 110/120Vac | MYQ4 AC110/120 | MYQ4Z AC110/120 | - | |
| 200/220Vac | MYQ4 AC200/220 | MYQ4Z AC200/220 | MYQ4-02 AC200/220 | |
| Front-mounting socket (screw clamp terminals or solder terminals) |
PYF14A
PYF14A-E
PYF14T
|
- | ||
| Track or screw mounting push-in plus terminal block with release lever |
PYF-14-PU |
- | ||
6. Latching models (coil latching), relays with plug-in or PCB terminals
6.1 Miniature power relays without operation indicator
6.1.1 Miniature power relays without operation indicator with DC coil
(back to index)
| 2 C/O / 2PDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
||
|---|---|---|
 |
 |
|
| Standard contacts | Plug-in | PCB terminals |
| 12Vdc | MY2K DC12 | MY2K-02 DC12 |
| 24Vdc | MY2K DC24 | MY2K-02 DC24 |
| 48Vdc | MY2K DC48 | - |
6.1.2 Miniature power relays without operation indicator with AC coil
(back to index)
| 2 C/O / 2PDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
||
|---|---|---|
 |
 |
|
| Standard contacts | Plug-in | PCB terminals |
| 12Vac | MY2K AC12 | - |
| 24Vac | MY2K AC24 | MY2K-02 AC24 |
| 100Vac | MY2K AC100 | - |
| 100/110Vac | MY2K AC100/110 | - |
7. Hermetic models, relays with plug-in or PCB terminals
7.1 Miniature power relays without operation indicator with DC coil
(back to index)
| 4 C/O / 4PDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
||||
|---|---|---|---|---|
 |
 |
 |
 |
|
| Plug-in | PCB terminals | |||
| Standard contacts | Bifurcated contacts | Standard contacts | Bifurcated contacts | |
| 12Vdc | MY4H DC12 | MY4ZH DC12 | - | - |
| 24Vdc | MY4H DC24 | MY4ZH DC24 | MY4H-0 DC24 | MY4ZH-0 DC24 |
| 48Vdc | MY4H DC48 | MY4ZH DC48 | - | - |
| 100/110Vdc | MY4H DC100/110 | MY4ZH DC100/110 | - | MY4ZH-0 DC100/110 |
| Front-mounting socket (screw clamp terminals or solder terminals) |
PYF14A
PYF14A-E
PYF14T
|
- | ||
| Track or screw mounting push-in plus terminal block with release lever |
PYF-14-PU |
- | ||
7.2 Miniature power relays without operation indicator with AC coil
(back to index)
| 4 C/O / 4PDT Rated current (220Vac resistive load) 5A (24Vdc resistive load) 5A |
|||
|---|---|---|---|
 |
 |
 |
|
| Plug-in | PCB terminals | ||
| Standard contacts | Bifurcated contacts | Standard contacts | |
| 24Vac | MY4H AC24 | MY4ZH AC24 | - |
| 100/110Vac | MY4H AC100/110 | MY4ZH AC100/110 | - |
| 110/120Vac | MMY4H AC110/120 | MY4ZH AC110/120 | - |
| Front-mounting socket (screw clamp terminals or solder terminals) |
PYF14A
PYF14A-E
PYF14T
|
- | |
| Track or screw mounting push-in plus terminal block with release lever |
PYF-14-PU |
- | |
8. Accessories
(back to index)
9. About relay contacts arrangement
(back to index)
SPDT : Single Pole Double Throw
DPDT : Double Pole Double Throw
3PDT : 3 Pole Double Throw
4PDT : 4 Pole Double Throw
